UK Based PCB

Contract Manufacturer

Reliable
Quality

Our commitment to quality is embedded in every stage of our process

40 Years
Experience

Family-run business delivering trusted expertise and knowledge

Dependable
Deadlines

Effective supply chain control to ensure you meet your deadlines

Same Day
Express Service

8-hour same-day express service to meet your urgent prototype deadlines

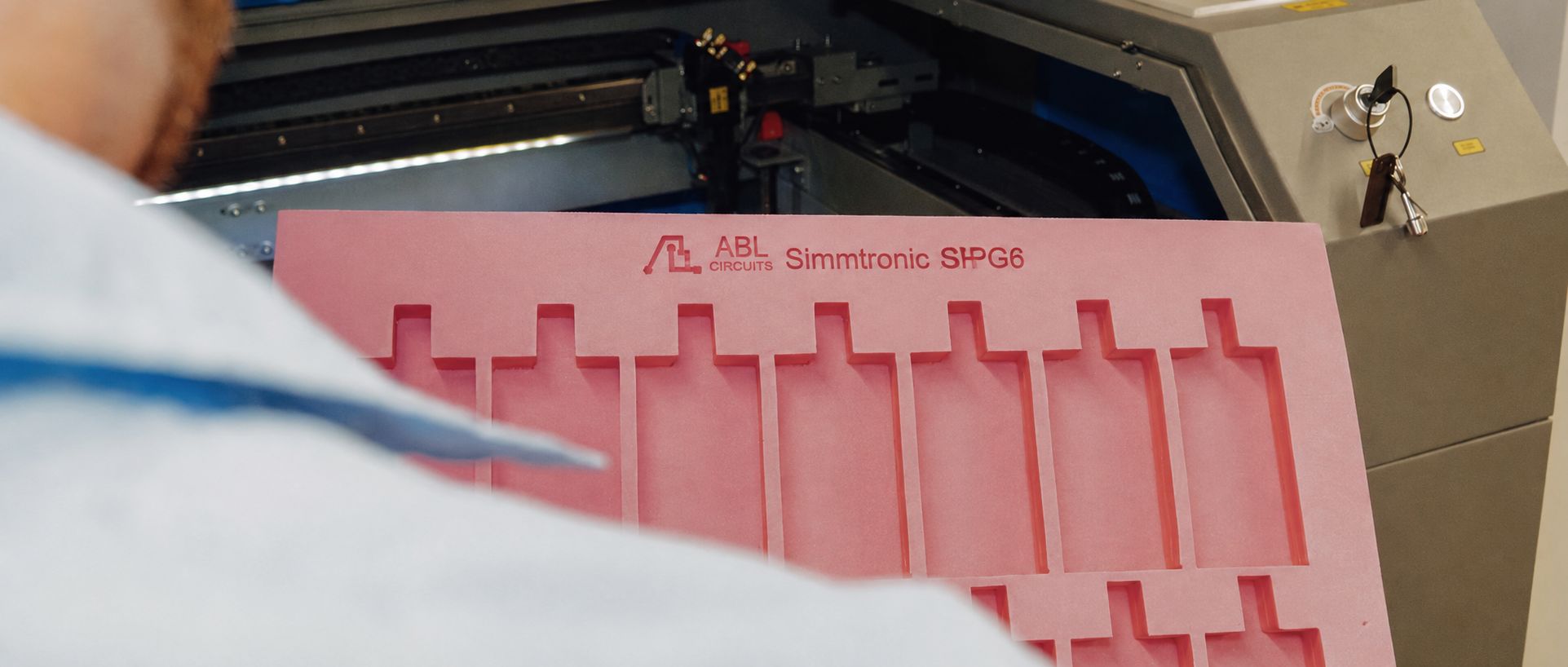

Strengthening Local Supply Chains – ABL Circuits & Simmtronics

A Perfect Partnership in Precision and Innovation

ABL Circuits Partnering with Seven Kings School to Inspire the Next Generation of Engineers

Experts in Contract Manufacturing

Discover more and see innovation in action at ABL Circuits

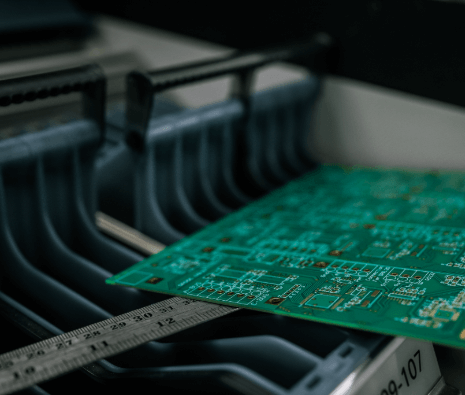

Our Quality Checks

Select a step to find out more

Procurement

1.

BoM Availability Check

Ensuring all components listed for the order are in stock, cost-effective, and not obsolete before production begins.

2.

ROSH Complaint Check

Verifying components and materials used meet environmental regulations by being free of hazardous substances like lead, mercury, and cadmium.

3.

Pre Build Check

Check all design files, components, and manufacturing specifications are complete, correct, and ready for production to avoid errors or delays.

4.

Traceability & Stock

Ensuring components can be tracked and that sufficient inventory is available to support production and quality control.

PCB MANUFACTURE

1.

Customer Data Check

Verify all provided Gerber files, specifications, and requirements are complete, accurate, and aligned with the intended production process.

2.

Manufacturing Checks

Confirming the design is compatible with fabrication processes, ensuring accurate layer alignment, drill data, and tooling paths for precise and defect-free production.

3.

Final Check - Full Electrical Flying Probe Test

Ensures every connection on the PCB is electrically sound, detecting shorts, opens, and misroutes.

ASSEMBLY

1.

Offline Programming & Check

Involves preparing machine programs away from the production line to ensure accurate component placement and reduce downtime during assembly.

2.

SMT Electrical Test

Checks the electronic properties of each component as well as the physical shape and size, ensuring the correct component is always placed.

3.

First off Check

A quality control step where the first assembled PCB is thoroughly inspected and tested to ensure it meets design specifications and functional requirements before full-scale production begins.

4.

3D AOI

Inspects the PCB for defects such as incorrect component placement and orientations, soldering issues, and missing parts, providing a detailed inspection of every solder fillet to ensure high-quality assembly.

FINAL UNIT ASSEMBLY

1.

Custom Build Pack

Ensuring all components listed for the order are in stock, cost-effective, and not obsolete before production begins.

2.

SMT Electrical Test

Checks the electronic properties of each component as well as the physical shape and size, ensuring the correct component is always placed.
